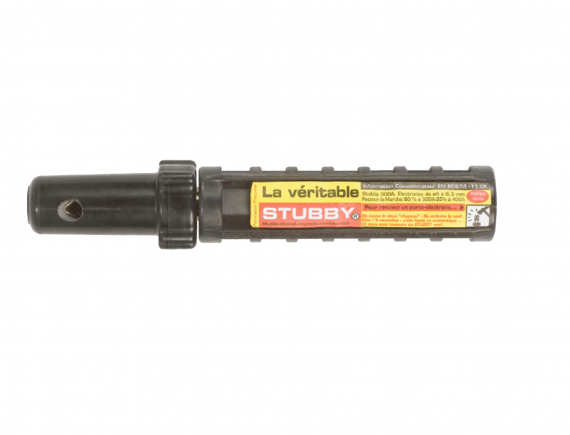

Electrode Holder Stubby: 400A at 35% et 300A at 60%

Electrode Holder Stubby: 400A at 35% et 300A at 60%
Electrode Holder Stubby: 400A at 35% et 300A at 60%

Electrode Holder Stubby: 400A at 35% et 300A at 60%

Ref. Stubby - 1013

  • In compliance with EN-60-974-11
  • Electrode blocking by screwing, right-hand pitch

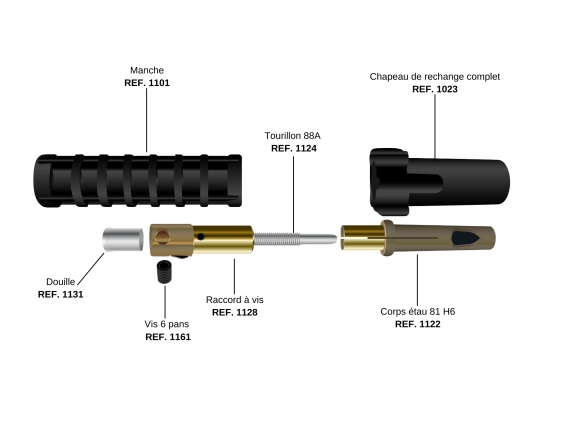

Related spare parts :

  • Ref. 1023: Complete cap for Stubby
  • Ref. 1101: Handle for Stubby
  • Ref. 1124 88A Trunnion for Stubby
  • Ref. 1122: Vice body 81 H6 for Stubby
  • Ref. 1128: Screw fitting for Stubby and Master
  • Ref. 1129 : Pin
  • Ref. 1130: Spring
  • Ref. 1131: End-sleeve
  • Ref. 1133: Screw connection + Stud + Spring + Sleeve + Screw
  • Ref. 1161: Hexagonal screw

Maximal intensity
400A at 35%

Maximal intensity
300A at 60%

Cable section
50 mm²

Maximum electrode diameter
6.3 mm

Indicative unit weight
460 g

Associated spare parts

Complete cap for STUBBY®

Réf. 1023

Complete cap for STUBBY®

81 H6 Vice Body for STUBBY®

Réf. 1122

81 H6 Vice Body for STUBBY®
