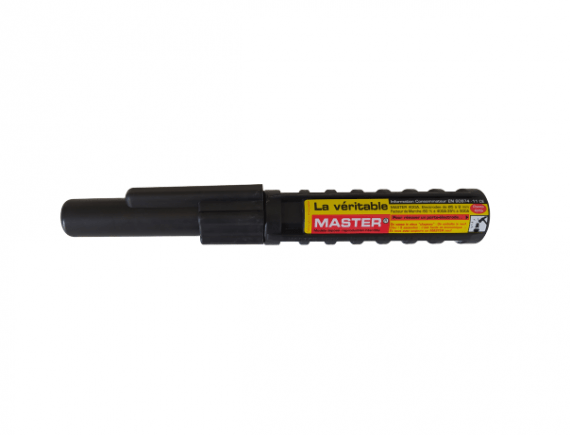

Electrode Holder Master: 500A at 35% and 400A at 60%

Electrode Holder Master: 500A at 35% and 400A at 60%
Electrode Holder Master: 500A at 35% and 400A at 60%

Electrode Holder Master: 500A at 35% and 400A at 60%

Ref. Master - 1018

  • In compliance with standard EN-60-974-11.
  • Electrode blocking by screwing, right-hand pitch

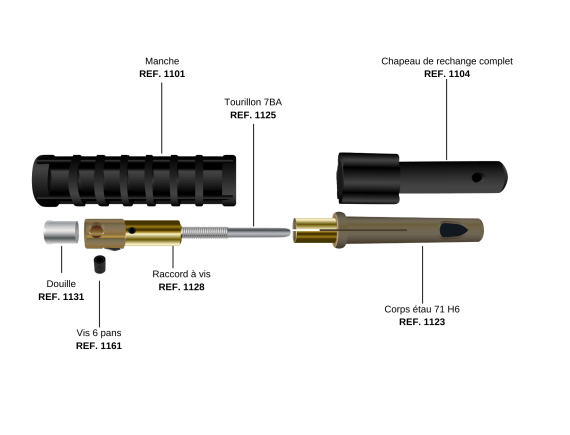

Related spare parts:

  • Ref. 1104: Complete cap for Master
  • Ref. 1101: Handle for Master
  • Ref. 1125: Trunnion 78A for Master
  • Ref. 1123: Vice body 71H6 for Master
  • Ref. 1128: Screw fitting for Stubby and Master
  • Ref. 1129: Pin
  • Ref. 1130: Spring
  • Ref. 1132: Screw connection + Stud + Spring + Sleeve+ Screw
  • Ref. 1135: End Sleeve for Master
  • Ref. 1161: Hexgonal screw M12

Maximal intensity
500A at 35%

Maximal intensity
400A at 60%

Cable section
50 mm²

Maximum electrode diameter
6.3 mm

Indicative unit weight
530 g

Associated spare parts

50mm² End sleeve

Réf. 1131

50mm² End sleeve

Complete cap for MASTER®

Réf. 1104

Complete cap for MASTER®

71H6 Vice Body for MASTER®

Réf. 1123

71H6 Vice Body for MASTER®

M12 Allen Screw

Réf. 1161

M12 Allen Screw
