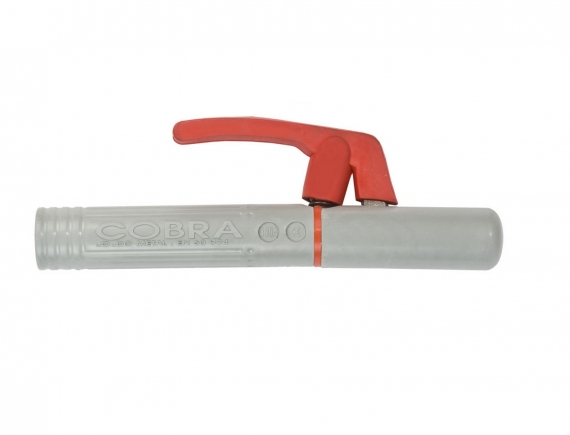

Lever-Action Electrode Holder Cobra: 300% at 35A and 250A at 60%

Lever-Action Electrode Holder Cobra: 300% at 35A and 250A at 60%
Lever-Action Electrode Holder Cobra: 300% at 35A and 250A at 60%

Lever-Action Electrode Holder Cobra: 300% at 35A and 250A at 60%

Ref. Cobra - 130.00


  • In compliance with standard EN-60-974-11
  • Electrode blocking by brass jaws

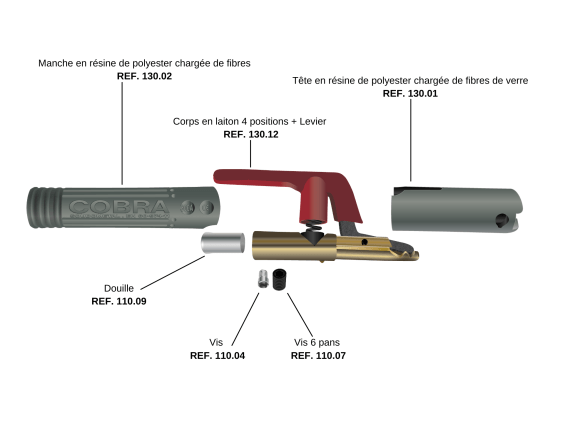

Related spare parts:

  • Ref. 130.01: fiberglass-filled polyester resin head
  • Ref. 130.02: fiberglass-filled polyester resine handle
  • Ref. 130.12 : brass body, 4 positions for the electrode + lever
  • Ref. 110.04: Screw for Cobra
  • Ref. 110.07: Hexagonal Screw M10
  • Ref. 110.09: End-sleeve for Cobra

Maximal intensity
300A at 35%

Maximal intensity
250A at 60%

Cable section
35 mm²

Maximum electrode diameter
4 mm

Indicative unit weight
400 g

Associated spare parts

Brass body 4 positions + Lever COBRA

Réf. 130.12

Brass body 4 positions + Lever COBRA

35mm² End sleeve

Réf. 110.09

35mm² End sleeve

Isolated Head for COBRA

Réf. 130.01

Isolated Head for COBRA

Screw

Réf. 110.04

Screw
