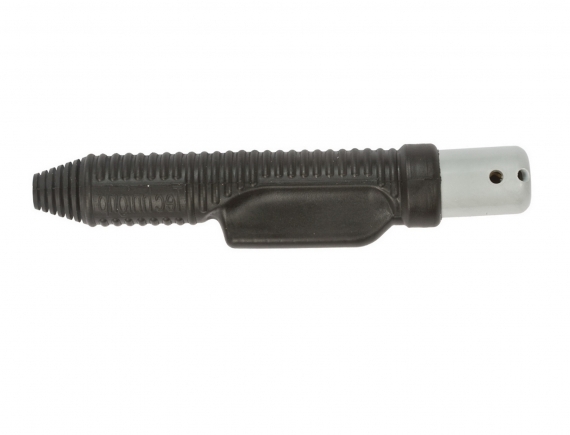

Electrode Holder Arc 500: 500A at 35% and 400A at 60%

Electrode Holder Arc 500: 500A at 35% and 400A at 60%
Electrode Holder Arc 500: 500A at 35% and 400A at 60%

Electrode Holder Arc 500: 500A at 35% and 400A at 60%

Ref. Arc 500 - 601.00

  • In compliance with standard EN-60-974-11
  • Electrode blocking by brass jaws
  • Total insulation
  • Ergonomic shape
  • 3 positions for the electrode 90°, 135°, 180°

Can be used by both left and right handed people

Related spare parts:

  • Ref. 110.07 : Hexagonal screw M10
  • Ref. 600.01: brass body, cable fastening by hexagon socket bolts
  • Ref. 600.02: brass lever
  • Ref. 600.03: Spring
  • Ref. 600.04: fiberglass-filled polyester resin head. Drilling at 6.2 mm
  • Ref. 600.05: cotter pin
  • Ref. 600.06: rubber sheath which resists to greasy substance, ozone and incandescent splatters
  • Ref. 600.08: Flat copper braid
  • Ref. 1134: Connector

Maximal intensity
500A at 35%

Maximal intensity
400A at 60%

Cable section
70 mm²

Maximum electrode diameter
6.3 mm

Indicative unit weight
335 g

Associated spare parts

Copper Flat Braid for Arc 500

Réf. 600.08

Copper Flat Braid for Arc 500

Brass Body for ARC 500

Réf. 600.01

Brass Body for ARC 500

Isolated Head for ARC 500

Réf. 600.04

Isolated Head for ARC 500

M10 Allen Screw

Réf. 110.07

M10 Allen Screw ®
